SJ Series
DOD Inkjet
Smart Jet uses industry-leading head technology to deliver UV-cured 600 DPI DOD Ink onto any surface.
Single Pass Drop on Demand Variable Printing at High Speeds & High Resolution
The SJ75 DOD Inkjet variable printing solution is the first-choice printer for high-speed, high-resolution single-pass inkjet printing applications.
With its small drop size and high nozzle density head, the SJ75 is designed to reduce ink consumption while maintaining superior print quality for high-efficiency printing.
The module covers a wide range of industrial application requirements for printing on porous, semi-porous, and non-porous substrates.
Membership & Loyalty

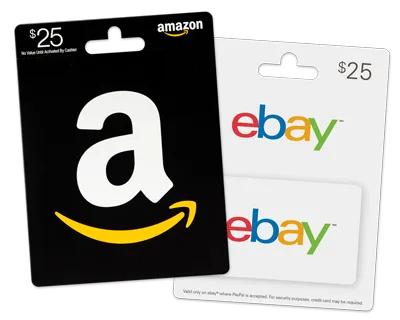

eCommerce

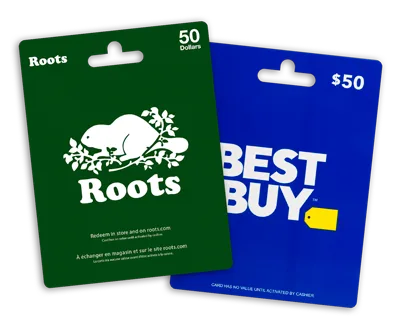

Retail
Design Variations
SJ-75
3″ print area for small product printing
SJ-150
6″ print area for document or large product printing
SJ-365
13″ print area for web personalization
Where Used
This technology is used in the following automated solutions.
CP-250
Card Personalization System
With speeds up to 30,000 PPH, it is ideal for all your closed, secure, and open loop needs.
EMV-250
Smart Card Issuance
Engineered to meet the rigorous demands of EMV chip card encoding, this system combines advanced encoding capabilities with high-speed processing to deliver unparalleled efficiency.
SC-500
Secure Card Packaging
Inline card to carrier affixing, booklet tipping, 4-corner secure folding/gluing, and DOD personalization.
Technology
in Action
Performance
- High-Resolution Output: Delivers laser-quality print with a resolution of 600 DPI at speeds over 500 feet per minute.
- Advanced Nozzle Technology: Features 1776 nozzles per head, ensuring detailed and crisp imaging.
- Versatile Printing: Capable of handling UV, solvent, water, or oil-based inks for diverse substrate applications.
Efficiency
- Economical Ink Usage: Small 3.5 pL drop size reduces ink consumption, lowering operating costs.
- Fast Line Rate: Operates at a swift 80 kHz line rate, boosting throughput.
- Large Ink Capacity: Comes with a 2.5 L holding tank, minimizing the need for frequent refills.
Reliability
- Built-in Brushless Air Pump: Ensures high-speed and accurate ink release, enhancing print quality.
- Head Shutoff Valve: Minimizes service requirements by preventing ink leaks, ensuring continuous operation.
- Robust Construction: Stainless steel housing and IP55 pressurized print manager cabinet for durability.
Compatibility
- Multi-Head Configuration: Allows print head stitching of up to 8 heads for wide printing applications.
- Fiber Optic Network: Supports high-speed data transfer, ensuring reliable and secure connections.
- Substrate Versatility: Compatible with a range of materials, including porous, semi-porous, and non-porous surfaces.
Performance
- Max Print Speed: 700 ft/min
- Vertical Resolution: 600 DPI
- Horizontal Resolution Options: 300, 600, 900, 1200 DPI
- Drop Volume: 3.5 pL
- Nozzles: 1776 (6 × 296)
Physical
- Magazine Size: Adjustable to product dimensions
- Number of Arms: Configurable based on application
- Head Width: 75 mm (2.95″)
- Ink Tank Capacity: 2.5 L
Utilities
- Standard Voltage: Configurable to regional requirements
- Motor Size: Sized appropriately for the system’s operational demands
- Max Vacuum: Optimized for label application
- Max Air Consumption: Efficiently designed for energy savings
Optional
- Multi-Trigger Application: For complex printing tasks
- Product Shape Speed Profiling: Adjusts printing to the shape of the product
- Oversize Label Option: For larger print requirements
- Vision Camera Inspection: Ensures print quality and accuracy
