VSC-1000
Vision Scan System
The VSC-1000 Hish-Speed Vision Scan system can manage up to 8 camera inputs with 4 parallel channels, allowing asynchronous management with real-time hardware.
High-Speed Vision Scan System for Quality
Assurance & Defects
The VSC-1000 High-Speed Vision Scan System offers state-of-the-art vision scanning and real-time image processing, ideal for high-speed production environments.
Equipped with advanced OCR, barcode reading, and image recognition capabilities, this system ensures precise quality control, enhances product integrity, and reduces waste by identifying defects early in the production process.
Barcode Codification and Grading
Label and Placement Verification

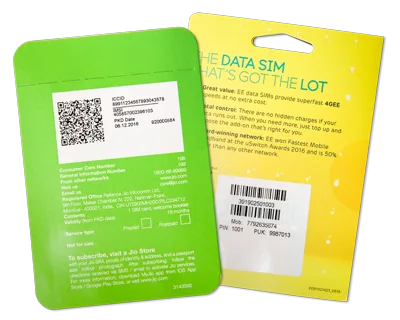

Printing Verification
Vision Scan System: Design Variations
Our Vision Scan System is adaptable with a range of customization options to suit various industrial requirements, ensuring seamless integration into existing production lines.
Where the technology is Used
The High-Speed Vision Scan System is used in the following automated systems.
FG-500
Specialty Carton Folding, Gluing and Finishing
Explore the FG-500 Folding and Gluing System for high-precision carton packaging. With ±0.4 mm accuracy, 600 DPI printing, and real-time quality assurance, achieve flawless packaging outcomes.
SC-500
Secure Card Packaging
Inline card to carrier affixing, booklet tipping, 4-corner secure folding/gluing, and DOD personalization.
Technology
in Action
Performance
- High-Speed Vision Scanning: Capable of scanning at speeds up to 600 ft/min
- Advanced Image Processing: Real-time processing with a response time as quick as 2 ms
- Dynamic Adaptability: Easily adjusts to new product lines with minimal downtime
Accuracy
- Precision Imaging: Utilizes high-resolution cameras for detailed image capture
- Complex Code Reading: Efficiently decodes a wide array of barcode and OCR formats
- Error Reduction: Significantly lowers the chance of production errors through meticulous inspection
Integration
- Seamless System Integration: Designed to complement existing Pack-Smart systems
- Flexible Configuration: Supports both line scan and area scan applications
- User-Friendly Interface: Simplifies operations with an intuitive control system
Reliability
- Robust Build: Engineered for continuous operation in demanding industrial settings
- Low Maintenance: Designed to require minimal upkeep, reducing operational costs
- Consistent Performance: Delivers reliable results even under rigorous use
Technical Specifications
- Camera Resolution: Up to 2000 × 1000 pixels for clear, detailed images
- Operational Speed: Handles line speeds up to 600 ft/min without compromising image quality
- Field of View: Offers a range from 170 × 85 mm to 200 × 100 mm, adaptable to different sizes of products
Operational Parameters
- Max Speed: 600 ft/min ensures rapid processing suitable for high-throughput environments
- Camera Setup: Can manage up to 12 cameras per system, providing comprehensive coverage
- Connectivity: Equipped with RS232 Serial and Ethernet for easy network integration
Optional Technologies
Related modules are available for inline applications.
SJ Series
DOD Inkjet
Smart Jet uses industry leading head technology to deliver UV Cured 600 DPI DOD Ink onto any surface.
HSL-60
High-Speed Label Applicator
The HSL-60 is a highly versatile module that applies pressure sensitive labels at high speeds and accuracy for the most demanding precision-critical applications.
BSC-1000
Barcode and Data Reading
A user-friendly, fully packaged CCD reader, offering easy integration and several configurations to meet a variety of needs.
BSG-1000
Barcode Scanning and Grading
The BSG-1000 Barcode Scanning and Grading module is designed to ensure that all your barcoded products meet ISO standards for quality.
