VC Series
Vacuum Transport
High torque servo-driven vacuum transport conveys products at accurate speeds and controls product placement with 8 selectable vacuum zones.
Transport Products Reliably at High Speeds and Precision
The Vacuum Conveyor is a truly versatile servo-driven transport module designed to maximize throughput with high acceleration up to speeds of 600 ft/min.
Perforated PVC belts with vacuum suction offer slippage-free transport of cards and paper products with conveyor widths ranging from 8 to 60 inches.
Powder-coated adjustable steel frame with anodized aluminum dual T-slots allows for seamless integration with existing modules, making it ideal for all custom tipping, converting, or finishing applications.
-
Cards
-

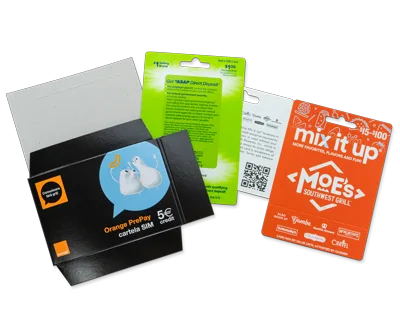

Carriers
-

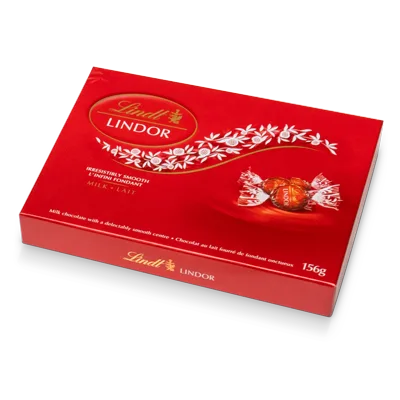

Cartons
-
Corrugated
Design Variations
Need something different? Look at the different design variations we have for the VC Series.

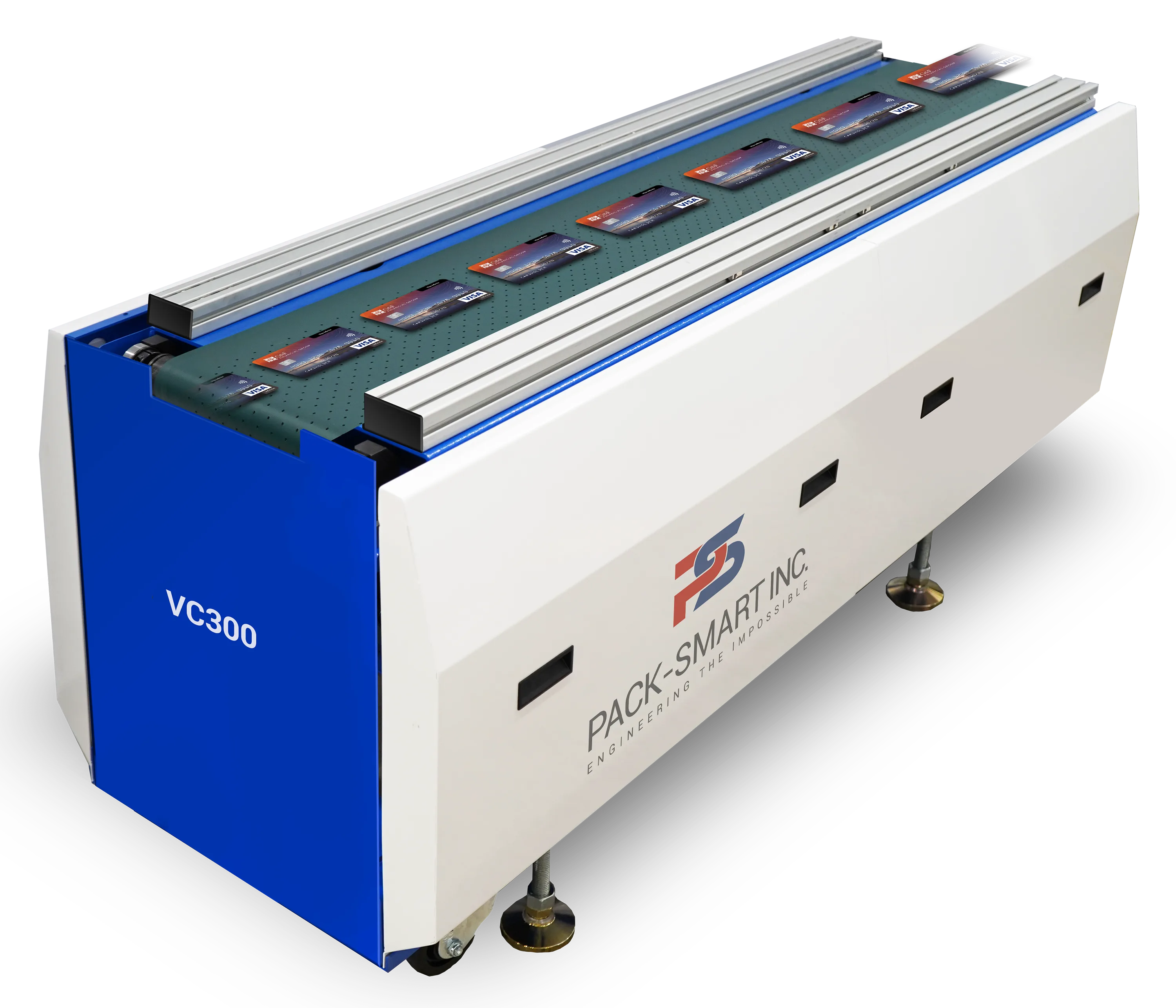

VC-300 Vaccum Conveyor
Lorem ipsum dolor sit amet

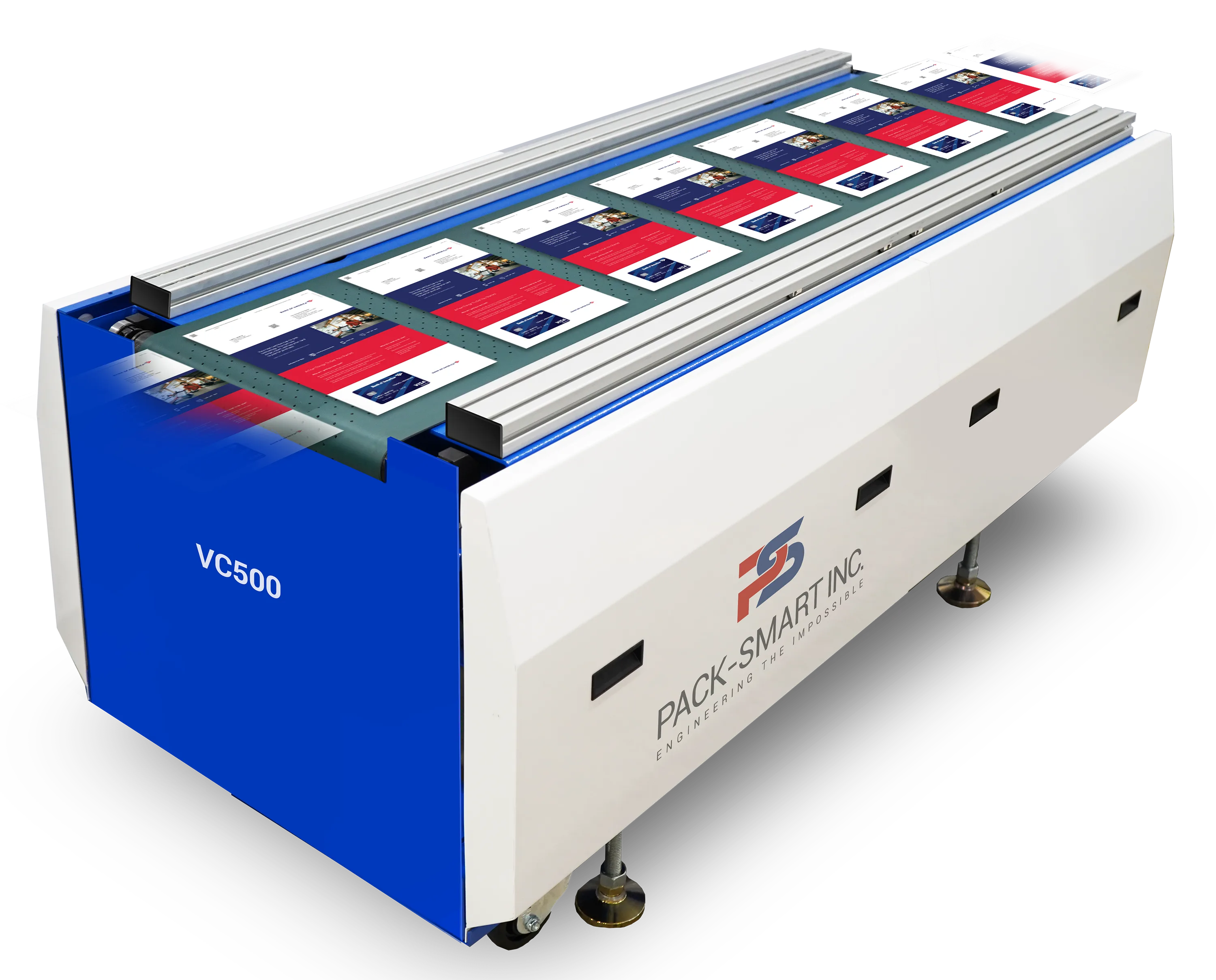

VC-500 Vaccum Conveyor
An essential part of any packaging
and print finishing process

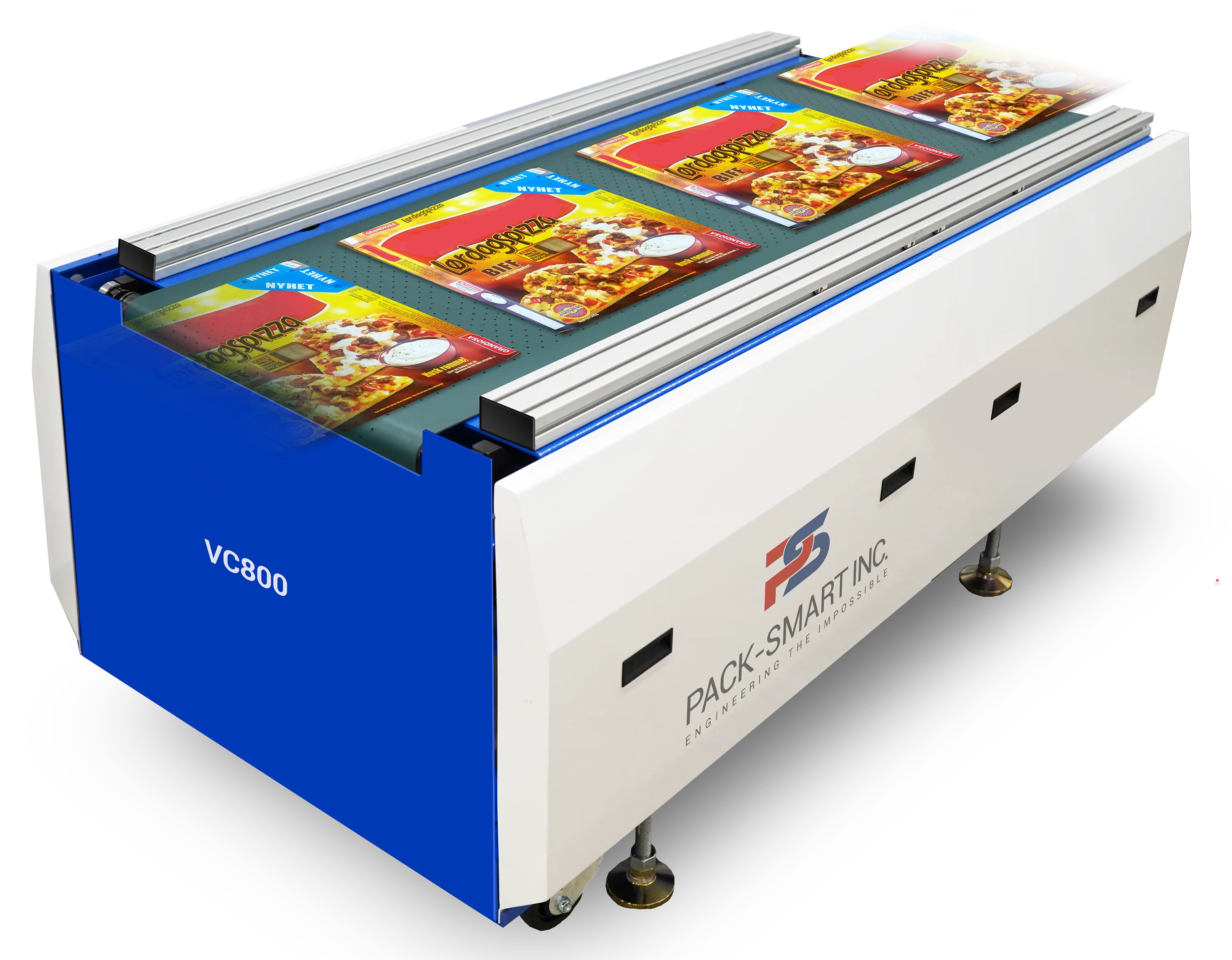

VC-800 Vaccum Conveyor
Ideal solution for all custom tipping,
folding and gluing applications

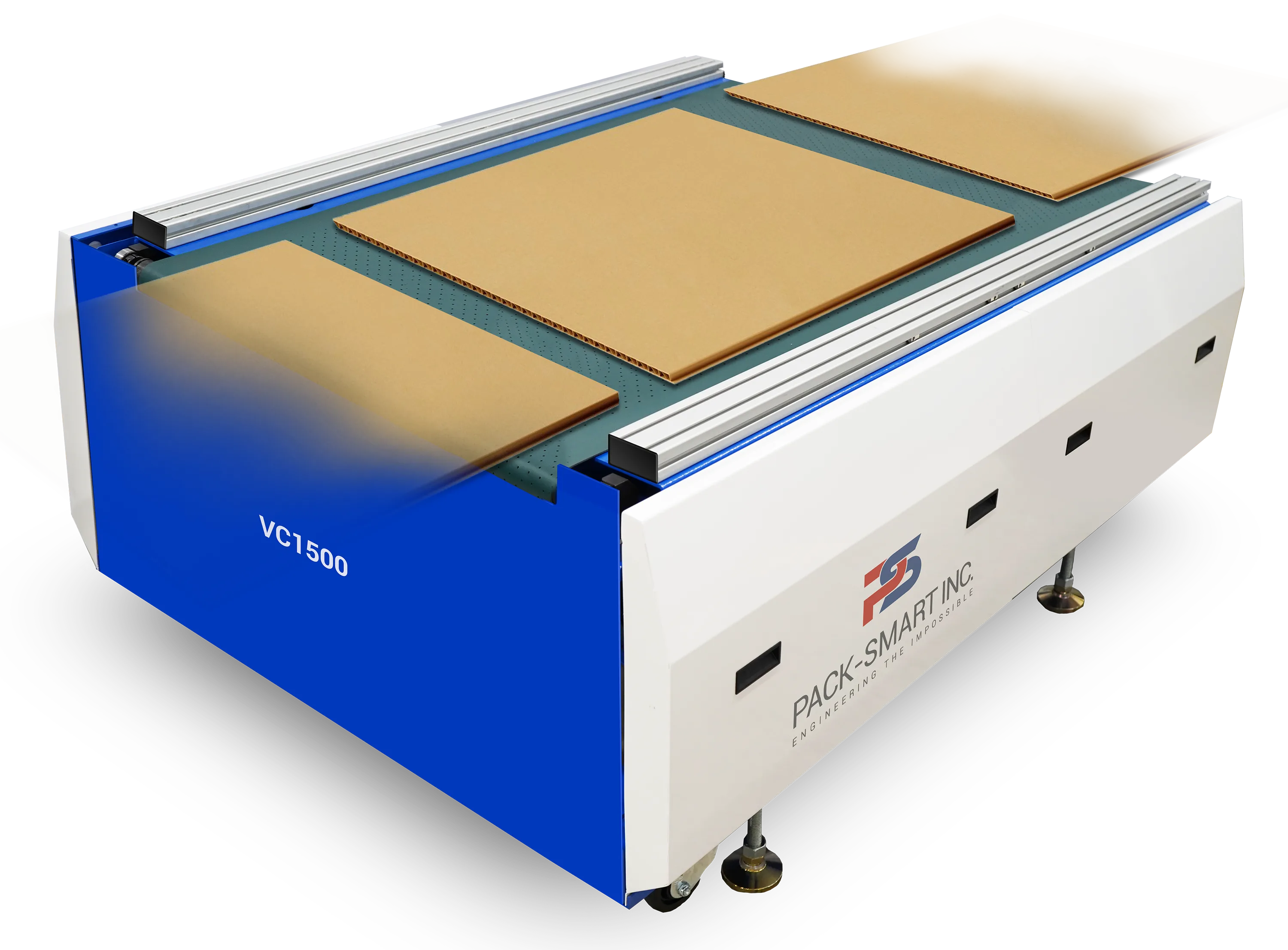

VC-1500 Vaccum Conveyor
Lorem ipsum dolor sit amet

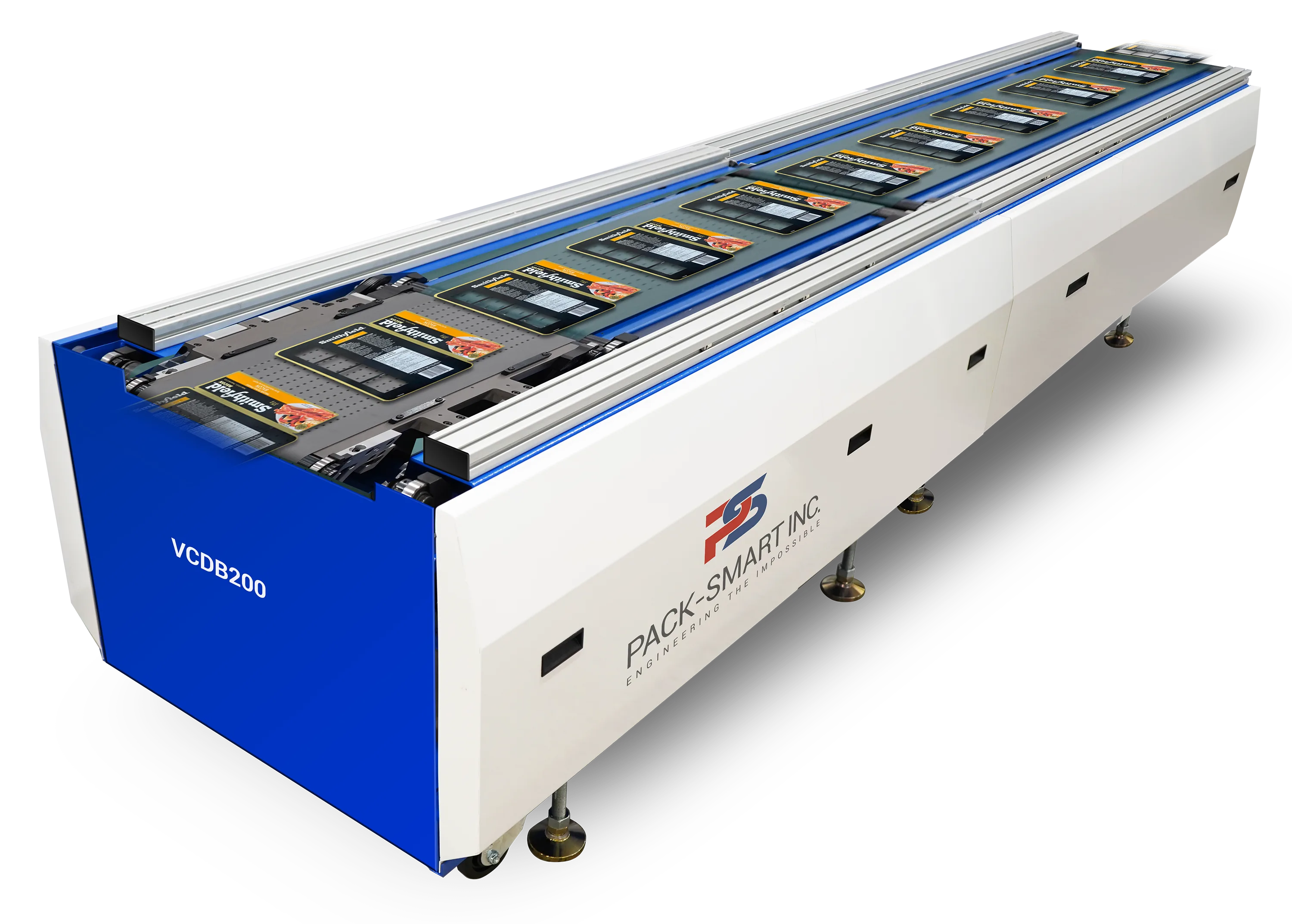

Perso Dual Belt
Consists of two independent belts
for personalization and drying

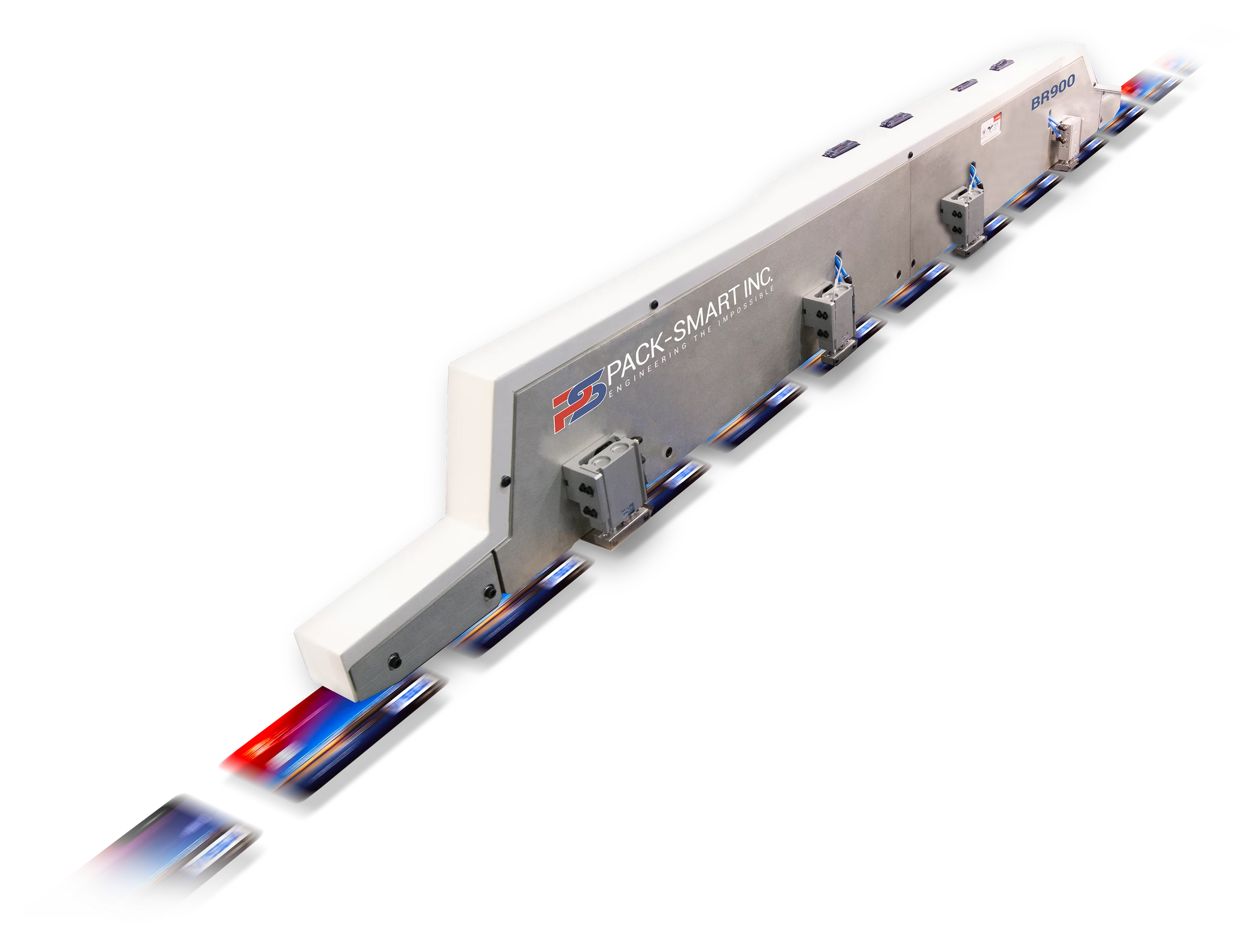

Bridge Transport
Carries products to alternate processes
using two-axis servo motors
Sectional Transport
Vacuum conveyors consist of two or more narrow belts
to allow space for folding modules or gluing modules
such that the glue does not spray on the belt
Where Used
This technology is used in the following automated solutions.
FG-800
Reinforced Carton Specialty Finishing
Combine folding, gluing, affixing, personalization, and sorting in a single pass.
FG-1500
Specialty Corrugated Folding and Finishing
Specialty 60″ Corrugated Folder Gluer with Plastics Clips and Reinforcements for POP Displays.
WA-800r
Window Affixing System
WA-800r delivers unmatched speed, accuracy and flexibility allowing affixing of rigid windows to virtually any carton product available.
Performance
- High torque brushless servo motor
- Independent vacuum generators
- Touch screen alphanumeric operator interface
Operational Ease
- Remote emergency stop
- Utilizes a truly endless PVC belt
- Modem for remote diagnostics
Design & Safety
- Variable Vector drive
- Ergonomic modular design
- Plexiglas guarding for visibility and safety
Adjustability & Control
- Selectable vacuum zones
- Adjustable leveling pads and locking casters
- Electronic speed synchronization
Performance
- Speed Range: 0—500 ft/min
- Vacuum: 8 selectable zones, 2000 CFM per zone
- Drive Type: Brush-less servo
Physical Dimensions
- Conveyor Widths: 8, 20, 30 & 60″
- Conveyor Lengths: 6′ & 12′
- Height Range: 736—965 mm
Drive & Synchronization
- Synchronization Method: Sercos
- Drive Size: 1—5 kW, close loop
- Drive Roller: 7″ (177.8 mm)
Belt & Registration
- Belt Type: Perforated with double “V” guide for tracking
- Sheet Registration Method: Vacuum
- Powder coat paint finish for durability
