MFF-120
Front Folding Module

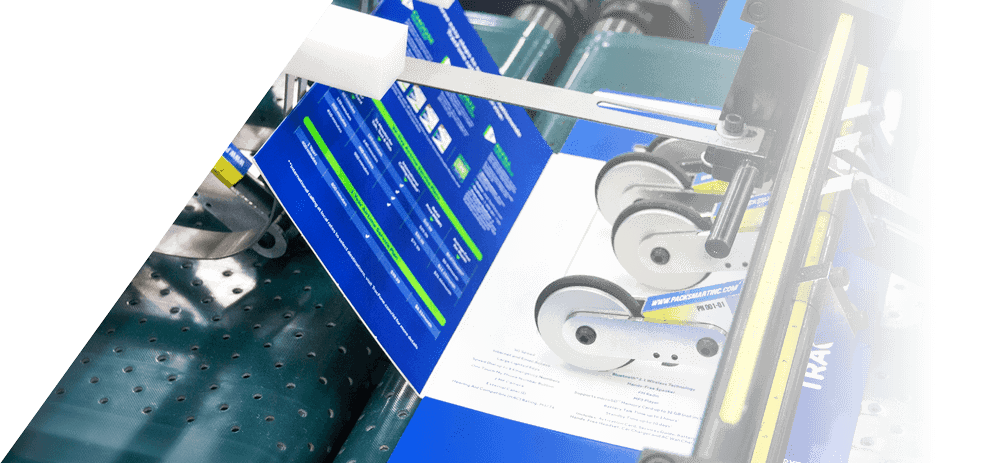

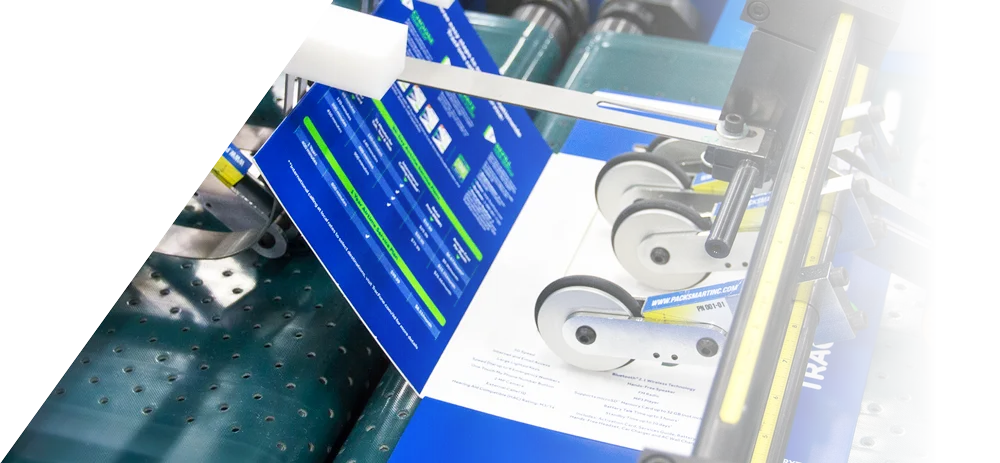

Streamline your production with the MFF-120 Front Fold Module, designed for high-speed, precise folding of various products at right angles.
Advanced Folding Solutions for Diverse Applications
The MFF-120 Front Fold Module is a dynamic, high-speed folding system engineered to handle a wide range of materials, from card carriers to POS displays. This module utilizes advanced air jet technology and a unique hooked folding arm to lift and fold products efficiently. Its compact design makes it an ideal addition to any production line, requiring minimal space and offering easy setup.
Equipped with toolless adjustable components and modular design, the MFF-120 enhances operational flexibility and reduces setup time, making it a valuable asset for industries looking to improve their folding processes with reliability and speed.
-
Membership & Loyalty
-
eCommerce
-
Retail
-
Direct Mail
-
POP Displays
Design Variations
The MFF-120 Front Fold Module is designed with a focus on versatility and adaptability, allowing it to seamlessly integrate into various production environments without the need for multiple model variations.
Where Used
This technology is used in the following automated solutions.
FG-500
Specialty Carton Folding, Gluing and Finishing
Explore the FG-500 Folding and Gluing System for high-precision carton packaging. With ±0.4 mm accuracy, 600 DPI printing, and real-time quality assurance, achieve flawless packaging outcomes.
FG-800
Reinforced Carton Specialty Finishing
Combine folding, gluing, affixing, personalization, and sorting in a single pass.
Technology
in Action
Folding Technology
- Air jets lift the front edge of products for precise folding
- Hooked folding arm captures the front edge to initiate accurate folds
- Dual nip rollers stabilize and complete the fold efficiently
Adjustments
- Toolless adjustable height for quick setup and changes
- Adjustable depth of fold through a movable stopper block
- X-Y position adjustment for perfect alignment
Durability
- Durable build with stainless steel and anodized aluminum components
- Modular design for easy integration onto existing conveyor systems
- Universal mounting fits various conveyor rails seamlessly
Sensory Automation
- Fiber optic sensors detect product presence and control air jet activation
- Automated air jet and folding mechanisms streamline the folding process
- Operator interface for easy control and monitoring of folding operations
Operational Speed
- Maximum Speed: Up to 400 m/min
- Efficient handling of varying product sizes and materials
Product Compatibility
- Handles a wide range of materials, including paper, cardstock, and lightweight cartons
- Adjustable for different product dimensions for versatile applications
Energy and Control
- Energy-efficient operations with regenerative power capabilities
- Low power consumption enhances overall sustainability
Dimensions
- Compact footprint allows for integration in limited spaces
- Easy installation and minimal maintenance requirements
