MSE-1
Magnetic Stripe Encoder
Revolutionize your card production with the MSE-1, an industrial-grade magnetic stripe encoder designed for high-speed, precise encoding operations.
An advanced Magnetic Stripe Encoder for Optimal Data Integrity
The MSE-1 offers robust, high-speed magnetic stripe encoding with advanced read and write capabilities that ensure accurate data storage on cards.
Designed for heavy-duty use, it supports various encoding standards and provides flexible, efficient operation with minimal maintenance requirements.
-
Payment Cards
-
Loyalty Cards
-

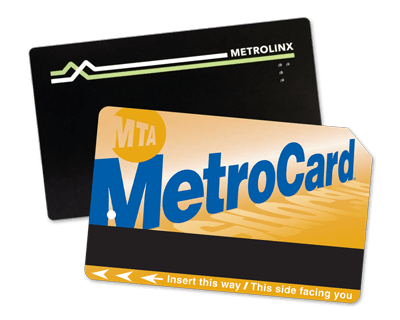

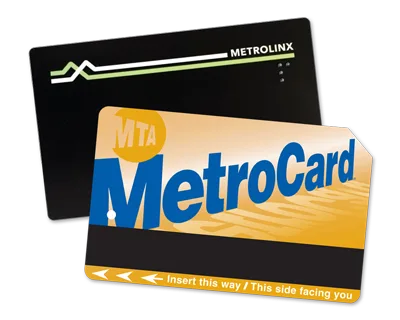

Transit Cards
-
ID Cards
Magnetic Stripe Encoder: Design Variations
Available as a modular belt-driven module or compact retrofit kit for existing conveyors, facilitating easy integration into various production environments.
Where this technology is used
This technology is used in the following automated systems.
CP-250
Card Personalization System
With speeds up to 30,000 PPH, it is ideal for all your closed, secure, and open loop needs.
SC-500
Secure Card Packaging
Inline card to carrier affixing, booklet tipping, 4-corner secure folding/gluing, and DOD personalization.
Technology
in Action
Performance
- High-speed magnetic encoding
- Supports both HiCo and LoCo coercivity
- Capable of three-track, reverse, and JIS encoding
Reliability
- Industrial-grade magnetic heads ensure a long lifespan
- Pneumatic cylinders for stable head movement
- Robust anodized aluminum frame with an overhead polycarbonate shield
Efficiency
- Micrometer screw gauges for precise belt adjustments
- Dual belt system accommodates various product sizes
- Optical sensors for accurate product positioning
Compatibility
- Retrofit options for easy installation on existing conveyor systems
- Top and bottom encoding capabilities
- Integrates with external devices for enhanced functionality
Performance
- Inline Encoding Speed: 35,000 PPH
- Control Processing Speed: 75,000 PPH
- Lifespan: Over 100 million cycles
Software Controls
- Bit Density: 10—4000 BPI
- Bits per Character: 4—9 (plus optional parity bit)
- Encoding Options: HiCo and LoCo, multi-segment, adjustable start sentinel
Physical Dimensions
- Unit Length: 432 mm (17″)
- Unit Width: Ranges from 203 to 686 mm (8″ to 27″)
- Unit Height: 254 mm (10″)
