1-PAS
Card to Bundle in One Pass
World’s first inline solution for high volume personalization, affixing, packaging and pack-out of secure open and closed loop cards at 20,000 PPH.

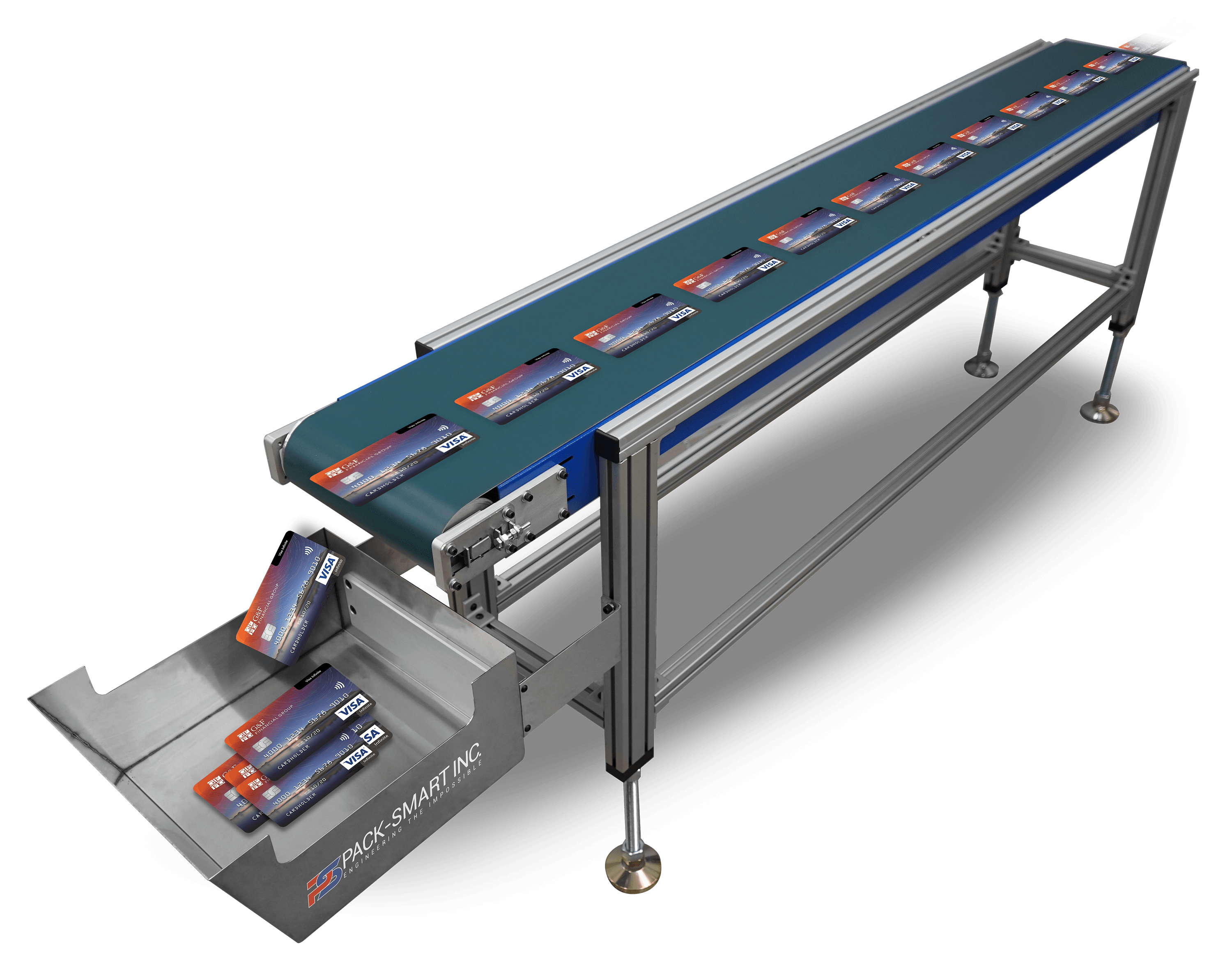

DL Series
Delivery Transport
Enhance your production line with the DL Series Delivery Transport, designed for efficient handling and transportation of diverse printed products.
Streamlined Product Transport for Various Applications
The DL Series Delivery Transport is engineered for friction-based product conveyance, offering optional batching to streamline the collection and packaging processes.
Suitable for a wide array of materials, from loyalty cards to large, corrugated products, the DL Series enhances workflow efficiency and operator comfort in high-speed applications.
Membership & Loyalty
eCommerce
Retail
Design Variations
The DL Series is available in several models to accommodate different product sizes:
DL-300
Small
Optimal for small products
with a 300 mm vacuum belt width
DL-500
Medium
Designed for medium products
with a 500 mm vacuum belt width
DL-800
Large
Suitable for large products
with an 800 mm vacuum belt width
DL-1500
Extra-Large
Perfect for extra-large corrugated products
with a 1500 mm vacuum belt width
Where Used
This technology is used in the following automated solutions.
CP-250
Card Personalization System
With speeds up to 30,000 PPH, it is ideal for all your closed, secure, and open loop needs.
SC-500
Secure Card Packaging
Inline card to carrier affixing, booklet tipping, 4-corner secure folding/gluing, and DOD personalization.
Technology
in Action
Ergonomics
- Two-stage height adjustment for operator comfort
- Variable speed settings to match production needs
- Ergonomic design to minimize operator fatigue
Design
- Stainless steel body for durability
- Emergency stop pendant for safety
- Heavy-duty construction to withstand industrial use
Functionality
- Batching method with acceleration feature for efficient product grouping
- Shingling rollers to organize output neatly
- Universal mounting capabilities for easy integration
Mobility
- Four-inch locking casters for stable yet movable operation
- Local-remote mode for versatile control options
- Adjustable side guides for different product sizes
Mechanical
- Width Options: 12″, 20″, 30″
- Height Range: 29″ to 35″
- Drive Size: 1/3 HP
Operational
- Belt Type: PVC with crowned design
- Drive Roller: Diameter of 3″
- Batching Method: Acceleration for efficient processing
Safety and Stability
- Heavy-duty construction for long-term reliability
- Emergency stop system for an immediate halt in emergencies
- Guarding features to protect operators
Adaptability
- Two-stage height adjustment for varying operational requirements
- Variable speed control to match conveyor speed with upstream operations
- Universal mounting for integration with existing systems
Optional Features
Related modules are available for inline applications.
VC Series
Vacuum Transport
High torque servo driven vacuum transport conveys products at accurate speeds and controls product placement with 8 selectable vacuum zones.
