Folding Cartons Application
Folding carton windowing systems position and apply window material to registered carton blanks before downstream folding, gluing, or inspection. Pack-Smart Inc. coordinates blank transport, placement, verification, and handoff around the required window geometry.
Folding Carton Applications
A carton window must align with the die-cut opening, remain securely attached, preserve the intended viewing area, and reach downstream folding without scratches, contamination, or interference.
Pack-Smart configures modular folding carton windowing systems that can combine blank feeding, registration, window-material feeding, surface-protected handling, adhesive application, pick-and-place positioning, inspection, reject handling, folding, and delivery. The final architecture depends on the carton, opening geometry, window material, placement tolerance, adhesive, and downstream process.
Window materials can attract static, shift, curl, scratch, or carry protective liners. The system must control both the carton and the window while coordinating adhesive placement, visible-area alignment, surface condition, and clearance from scores, glue zones, and folds.
Relevant Systems
Explore Pack-Smart systems for applying and verifying window material on folding carton blanks before downstream folding and gluing. System architecture depends on blank geometry, window shape, material handling, placement tolerance, adhesive process, inspection requirements, and line speed.
The WA-800r Rigid Window Affixing System applies rigid windows to high-value cartons and specialty packaging with scratch-free handling, servo-driven placement, and flexible inline finishing. It supports speeds up to 25,000 PPH, product widths up to 30 inches, and materials including PVC, PET, PLA, and polystyrene.
Production Challenges
Reliable window application depends on coordinating carton registration, window-material behaviour, adhesive placement, surface protection, and downstream conversion.
Small placement errors can expose adhesive, reduce the viewing area, leave an incomplete bond, or interfere with the carton structure.
Flexible or rigid window materials can attract static, shift during transfer, curl at the edges, or resist consistent separation.
Visible windows can be marked by guides, tooling, dust, adhesive, or contact with surrounding machine surfaces.
An incorrect adhesive pattern or window position can contaminate the visible area or interfere with scores, folds, closing, and final carton geometry.
Application Fit
The system configuration is selected around the carton opening, window material, required visible area, surface requirements, attachment method, and downstream process.
Place clear rigid panels onto high-value cartons while protecting the visible surface and maintaining precise alignment.

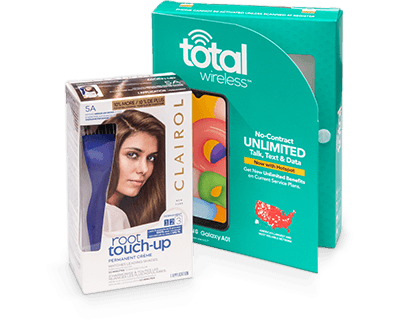

Apply transparent window material over die-cut openings for retail, personal-care, food, promotional, and consumer packaging.
Coordinate shaped window pieces or approved multi-opening carton formats with the required adhesive and placement pattern.
Combine window placement with supporting inserts, labels, reinforcement, folding, gluing, and other finishing operations.
Frequently Asked Questions
These are the questions manufacturers and production teams commonly ask when evaluating this application.
Potential materials include flexible films and rigid transparent components. The practical range depends on thickness, stiffness, static behaviour, surface protection, dimensions, adhesive compatibility, and carton design.
Yes, when the window geometry, presentation, protective handling, placement tolerance, adhesive method, and carton registration requirements have been evaluated.
The handling method can be engineered around approved contact points, low-marking materials, vacuum tooling, controlled guides, protective liners, and reduced sliding contact.
Sensors or machine vision can confirm window presence, orientation, alignment to the opening, visible-area coverage, and another defined acceptance criterion.
Yes. Window application can be coordinated with labels, inserts, reinforcement, folding, gluing, inspection, and delivery when the required process sequence is defined.
Provide representative carton blanks and windows, structural drawings, opening dimensions, material specifications, placement tolerances, adhesive requirements, surface-quality criteria, target throughput, and downstream-equipment details.
Application Assessment
Share the carton blank, window material, opening geometry, placement tolerance, adhesive requirement, and surface-quality criteria. Pack-Smart can identify the feeding, placement, inspection, and integration modules required for the application.
